Description
- High load capacity due to good load distribution on the transition beams.
- Maximum flexibility with panel thickness and fixture thickness.
- High flexibility due to a long threaded rod. Use with various panel thicknesses and attachment thicknesses.
- No installation tool necessary.
- Suitable for pre-positioned installation.
The cavity fixing for different board thicknesses and large usage lengths.
Advantages
- The wide transition beams ensure a good load distribution. This achieves a high load-bearing capacity.

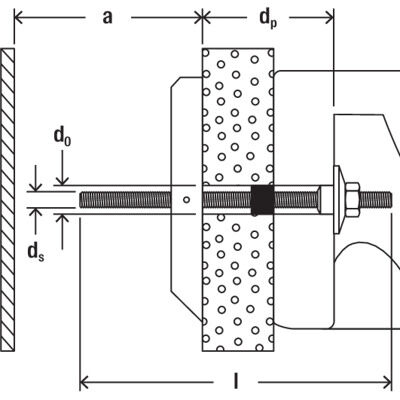

Technical data
| Drill diameter ( d0 ) | 30 mm |
| Max. panel thickness ( dp ) | 90 mm |
| Min. cavity depth ( a ) | 140 mm |
| Anchor length ( l ) | 180 mm |
| Screw dimension ( ds x ls ) | M10x180 mm |
| Packaging | Folding box |
| Amount | 25 pcs |
| GTIN (EAN-Code) | 4006209503263 |
Functionality
- When placed in the drill hole, the supporting element independently swings open behind the board.

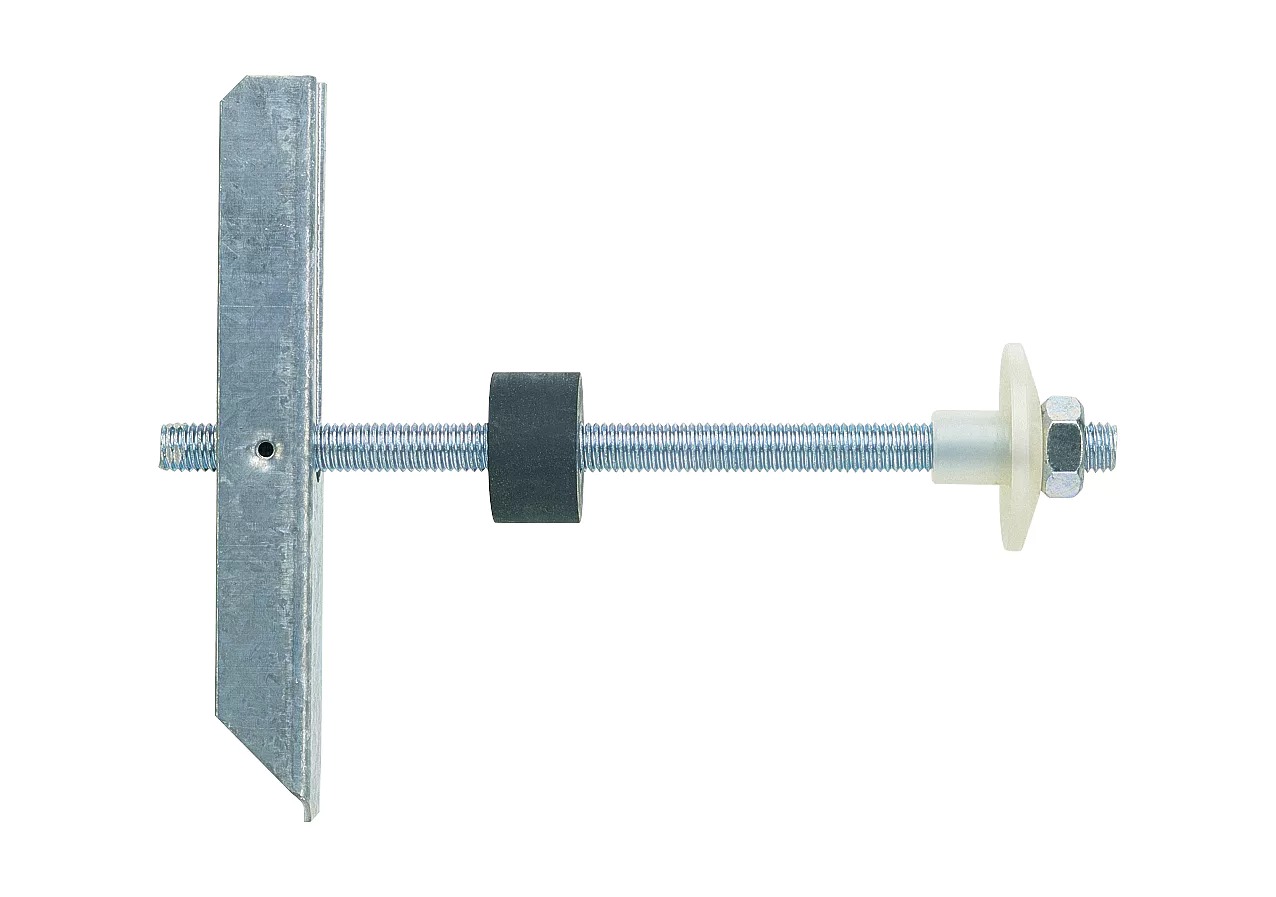

- The KM 10 is specially suited to fixing wash basins and urinals into installation and cavity walls.
- No special installation tool required. For a fast and convenient installation.
