Description

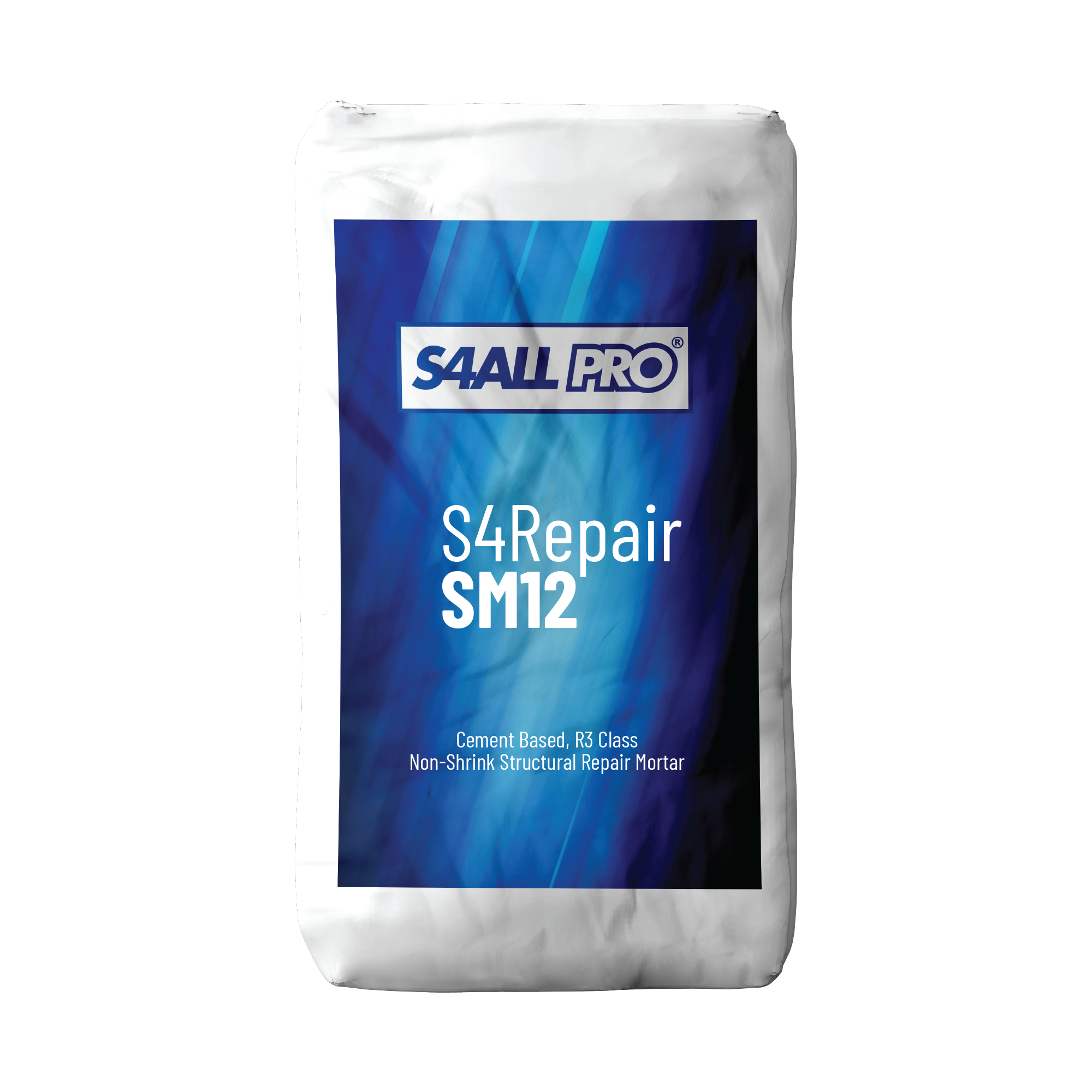

S4Repair SM 12 is a high-performance, cement-based structural repair mortar that is polymer and fiber-enhanced. This non-shrinkage, thixotropic mortar offers excellent bonding strength and high compressive strength, making it ideal for structural repair and bonding applications. It is resistant to water, frost, and impacts, ensuring long-lasting durability in both interior and exterior applications.
✅ Advantages:
- Easy to apply
- Thixotropic structure for vertical and horizontal applications
- Does not shrink after application
- Provides high bonding shortly after application
- High compressive strength
- High resistance against impacts, vibrations, water, and frost
- Does not contain corrosive materials
📌 Application Areas:
- Indoors and outdoors
- Horizontal and vertical applications
- Repair and leveling of concrete and reinforced concrete structural elements
- Filling gaps between old and new concrete
- Filling rod holes and core cavities
- Chamfer applications before waterproofing applications
⚙️ Technical Specifications:
| Property | Value |
|---|---|
| Chemical Structure | Cement-based, polymer and fiber-added powder |
| Mortar Density | 2.05 g/cm³ (±0.1) |
| Mixture Ratio | 4.00–4.50 L water / 25 kg powder |
| Pot Life | ~25 minutes |
| Application Thickness | 5-40 mm (for local repairs) |
| Bond Strength to Substrate (EN 1542) | ≥ 1.5 N/mm² |
| Compressive Strength (EN 12190) | Day 1: ≥ 11 N/mm², Day 7: ≥ 25 N/mm², Day 28: ≥ 35 N/mm² |
| Bending Strength (EN 12190) | ≥ 8 N/mm² |
| Soluble Chlorine Content | ≤ 0.05% |
| Consumption | 1.90–2.10 kg/m² (for 1 mm application thickness) |
| Reaction to Fire | A1 |
🛠️ Application Instructions:
- Ensure the surface is clean, smooth, and solid
- Mix the product with clean water until a homogeneous mixture is achieved
- Apply with a trowel to the surface
- If necessary, apply a second coat in the same manner
- The thickness should be a maximum of 10 mm for surface smoothing and 40 mm for chamfer applications
- Moisturize the surface for 2-3 days after application
⚠️ Warnings:
- Do not apply in weather conditions below +5°C or above +30°C
- Avoid application on frozen, melting, or surfaces at risk of rain or frost within 24 hours
- Do not apply on surfaces such as stone, gas concrete, plaster, or old painted surfaces
🧽 Cleaning & Storage:
- Clean tools with solvent immediately after use
- Store in a dry, moisture-free area, unopened, for up to 12 months
🧯 Safety:
- Wear protective clothing, gloves, and masks during application
- Avoid contact with eyes and skin
- Keep out of reach of children
- Consult the Safety Data Sheet (SDS) for more details
