The plug DDF is the powerful solution for Dot and Dab walls where plasterboards are attached to the masonry using plaster or wooden battens. The red fiberglass-reinforced plastic shaft powerfully bridges the gap between the plasterboard and the load-bearing wall. The long expansion element made of grey high-quality nylon ensures strong and secure hold in the substrate. The plug DDF is ideally suited to fix heavy attachments such as swivelling TV brackets, radiators, heavy shelves or wall cabinets. The fischer safety screw with integrated washer and additional TX drive is included in the scope of delivery for an easy installation.
Applications
For Dot and Dab walls and fastening of:
- TV brackets
- Radiators
- Heavy shelves
- Kitchen cabinets
Building materials
- Concrete
- Solid brick
- Solid sand-lime brick
- Solid block made from lightweight concrete
- Vertically perforated brick
- Perforated sand-lime brick
- Hollow blocks made from lightweight concrete
- Aerated concrete
You can find detailed information on building materials in the registration document.

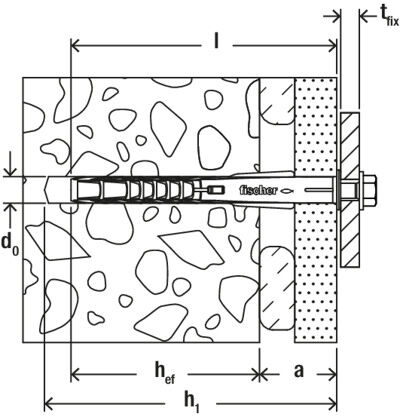

Functionality
- The DDF is suitable for pre-positioned installation.
- The red shaft bridges the cavity behind the plasterboard.
- The maximum distance from the top edge of the plaster board to the top edge of the base material is 45 mm.
- The long expansion element distributes the loads evenly into the solid and hollow masonry.
- The lateral long wings also splay in the substrate.
- Attachments up to 10 mm thick can be mounted using the included safety screw.
